A biceps machine has been developed and manufactured.
Object Design
The simulator was developed for the customer, according to the capabilities of its production. After agreeing on all the project details, the customer received the following:

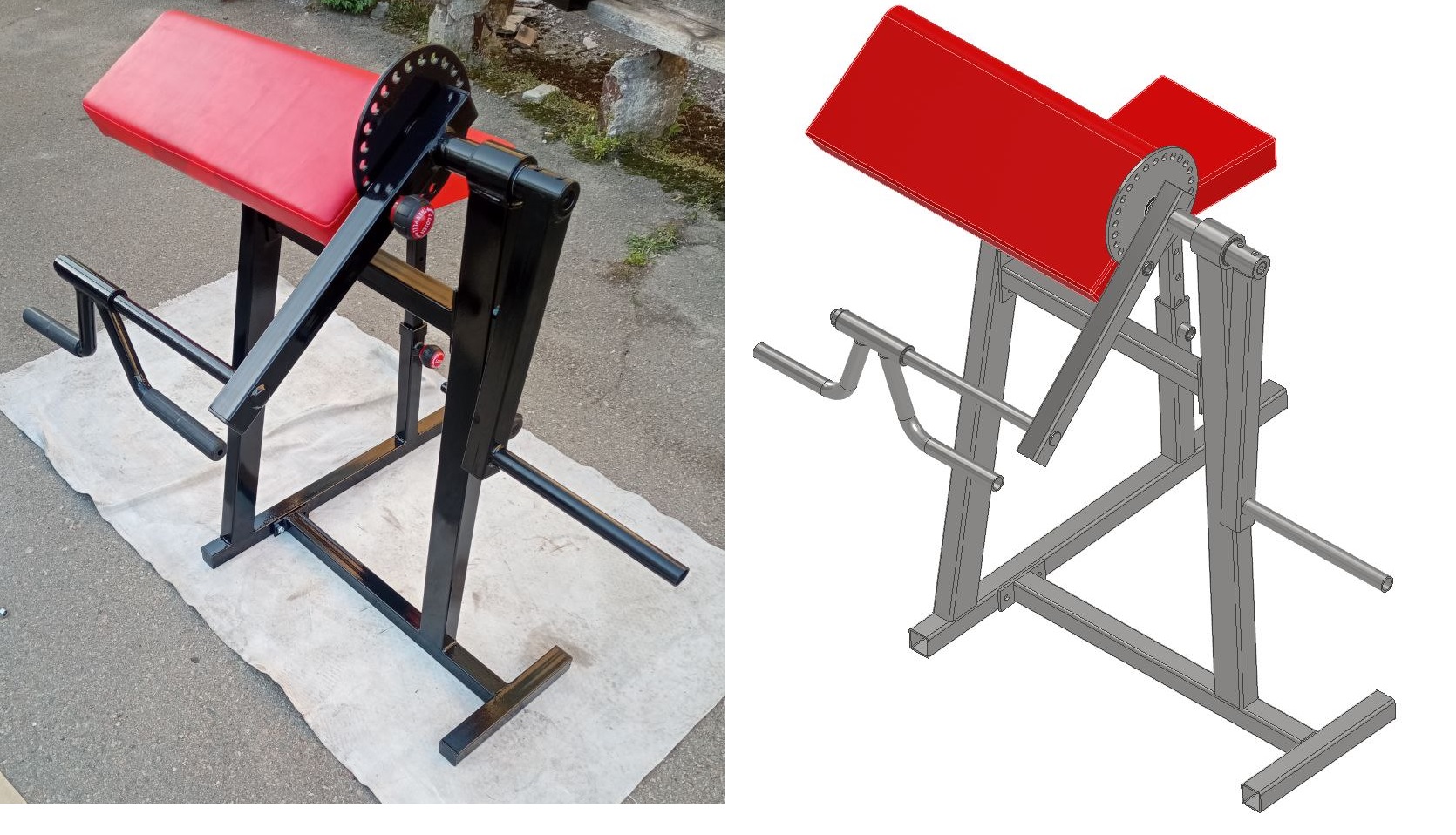

- 3D model (see photo on the right) made in Autodesk Inventor program (possible execution in other programs) and STEP files for viewing the 3D model in other programs;
- High-quality drawings according to GOST and DSTU standards. Drawings were provided in the original (i.e. in the program in which they were made) and in formats: PDF and JPEG/TIFF.
Based on the drawings, a biceps machine was manufactured (see photo on the left).
Execution of other simulators is possible.
#SolidWorks, #COMPAS-3D, #Autodesk Inventor
