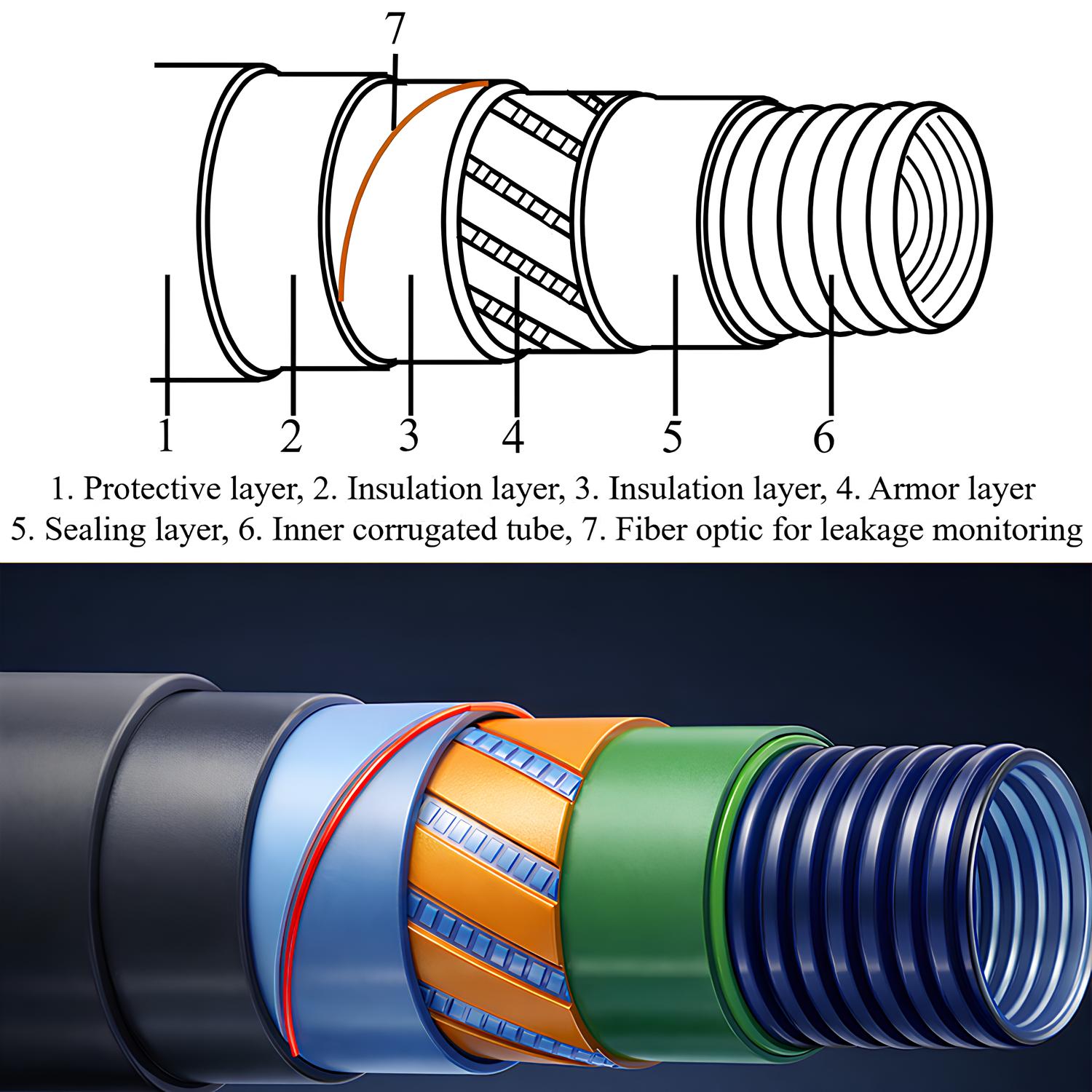

I created a detailed 3D visualization of a multi-layered industrial pipe in Blender, following a precise color and material specification for each layer. The model includes seven functional components — from the graphite protective shell to the inner corrugated tube and fiber-optic leak monitoring system.
Each material was custom-shaded using Principled BSDF nodes with accurate color codes and realistic roughness/refraction settings. Lighting was built with an HDRI setup to emphasize metallic reflections and glass-like surfaces. The final render was composed in Cycles, achieving a clean technical look suitable for engineering presentations and product documentation.
Each material was custom-shaded using Principled BSDF nodes with accurate color codes and realistic roughness/refraction settings. Lighting was built with an HDRI setup to emphasize metallic reflections and glass-like surfaces. The final render was composed in Cycles, achieving a clean technical look suitable for engineering presentations and product documentation.
