Example of visualization of the electrical control panel
Drawings & Diagrams

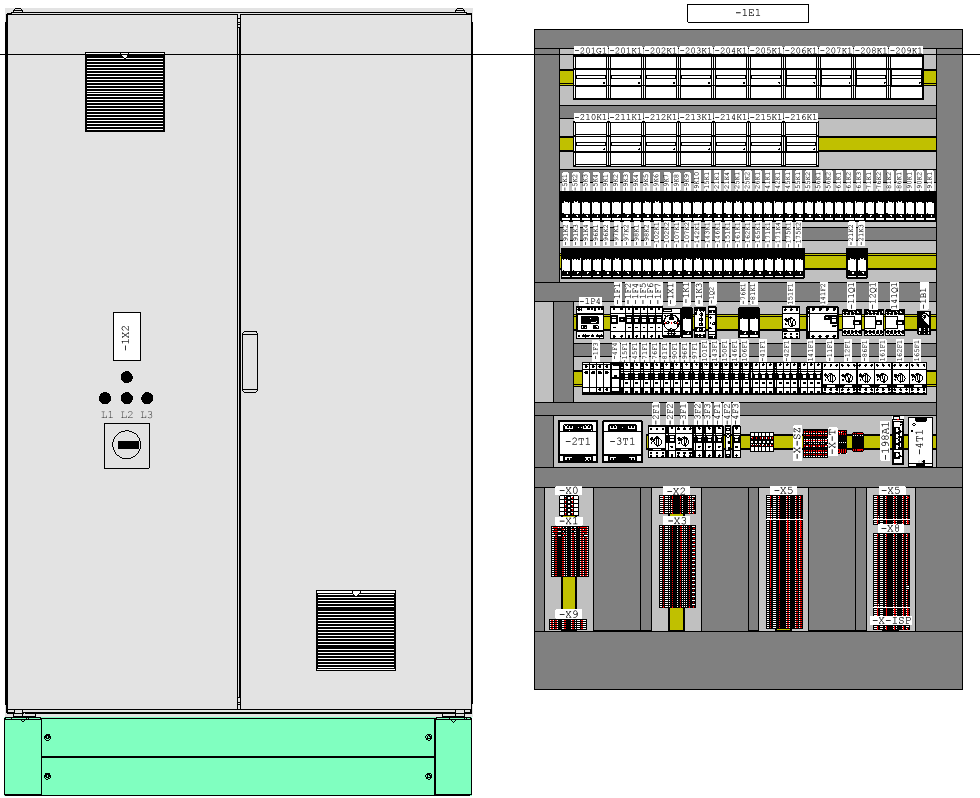

The work presents an example of visualizing an electrical control panel, created based on an existing sample.
The panel contains a large number of modules and terminals, so the main focus is on readability, logical zoning, and neat reproduction of the structure.
The project has been prepared as a demonstration example for the portfolio. The materials are intended for visualization and practical work tasks.
The panel contains a large number of modules and terminals, so the main focus is on readability, logical zoning, and neat reproduction of the structure.
The project has been prepared as a demonstration example for the portfolio. The materials are intended for visualization and practical work tasks.
