Logger of Change Stream
Embedded Systems & Microcontrollers

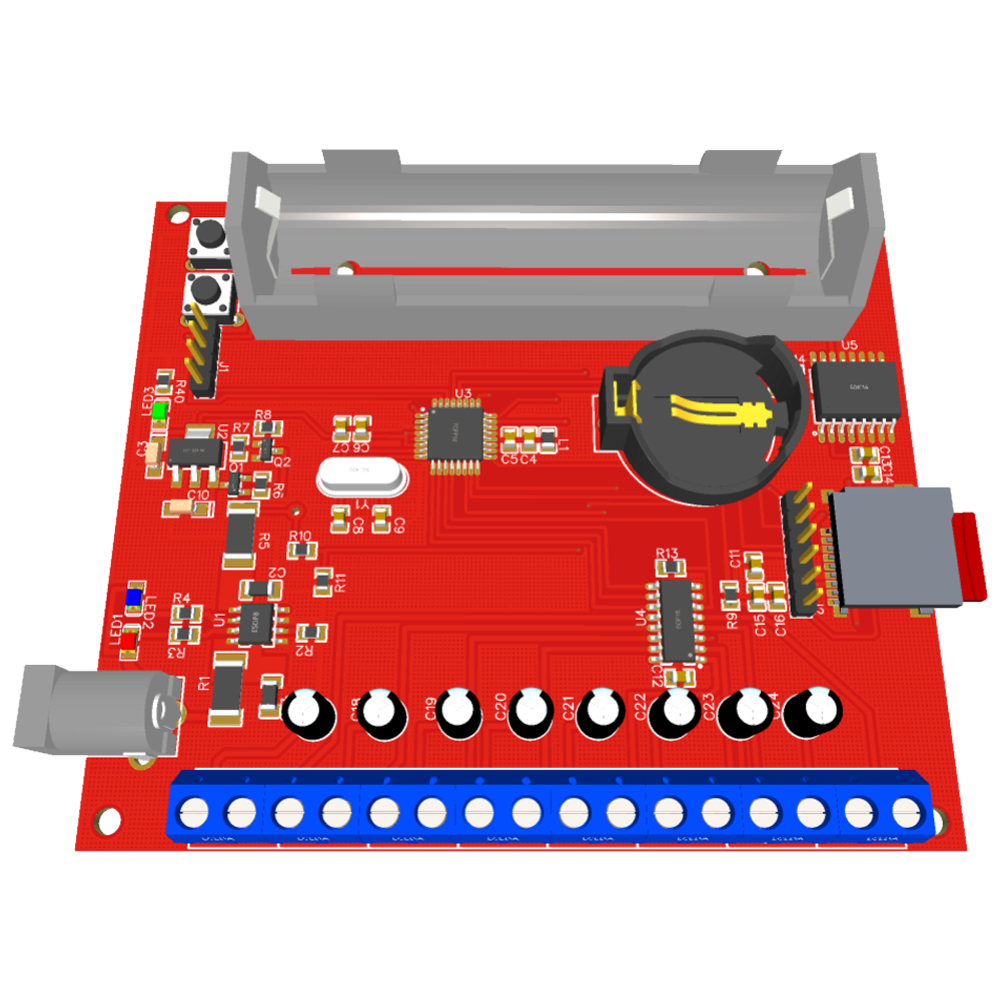

8-channel logger for non-contact (non-invasive) measurement of variable current consumption from the 220V network. It supports #SCT-013-xxx sensors or any other contactless current transformers.
The recording of the measured data is carried on the #microSD memory card according to the time flows using #RTC in the format: DATA;HOR;No CHANNEL;MENTING STREEM. This format allows you to easily later analyze the obtained data using a computer. All recorded data are shared by day, each day corresponds to a separate file.
It is also possible to work with the device, set time or count data using the #USB-UART switch and computer. Available autonomous battery power, which ensures the automatic operation of the device for at least 4 days, and provides the possibility to use it in places where there is no connection to the 220V power network.
The recording of the measured data is carried on the #microSD memory card according to the time flows using #RTC in the format: DATA;HOR;No CHANNEL;MENTING STREEM. This format allows you to easily later analyze the obtained data using a computer. All recorded data are shared by day, each day corresponds to a separate file.
It is also possible to work with the device, set time or count data using the #USB-UART switch and computer. Available autonomous battery power, which ensures the automatic operation of the device for at least 4 days, and provides the possibility to use it in places where there is no connection to the 220V power network.
