Manipulator for mounting SMD components on the board.

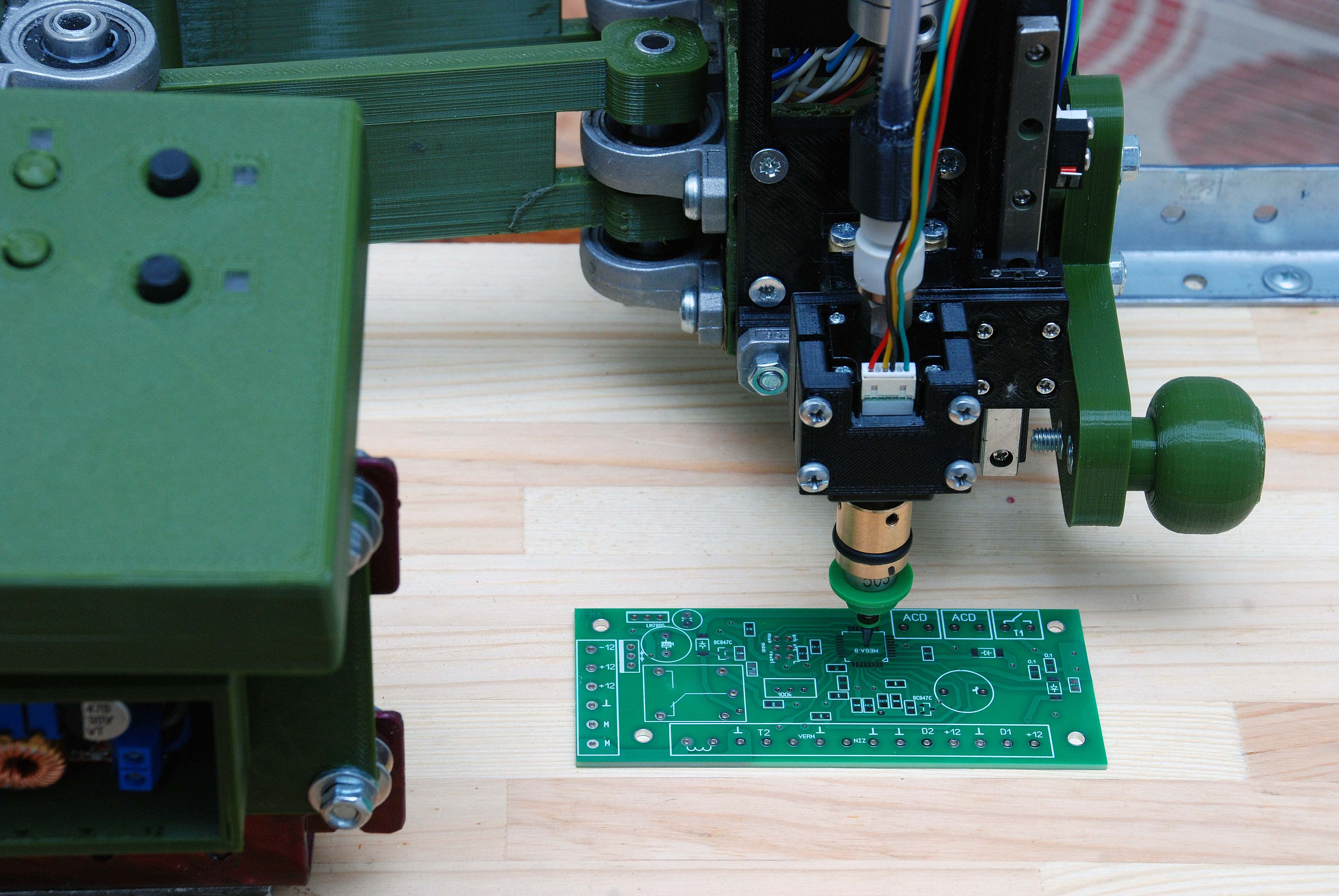

The manipulator allows for the placement of SMD components on the printed circuit board. Full automation on the Z-axis (raise, lower). High stability of the nozzle height above the board surface. Nozzle rotation. Power supply 12 - 30 volts. Current consumption 250 mA. Maximum board size 200 x 180 mm. Dimensions of the manipulator 500 x 300 x 300 mm. The cassette with components is not shown in the photo. In working mode, one or two buttons are used. Other buttons are used as needed (rotation, correction).
