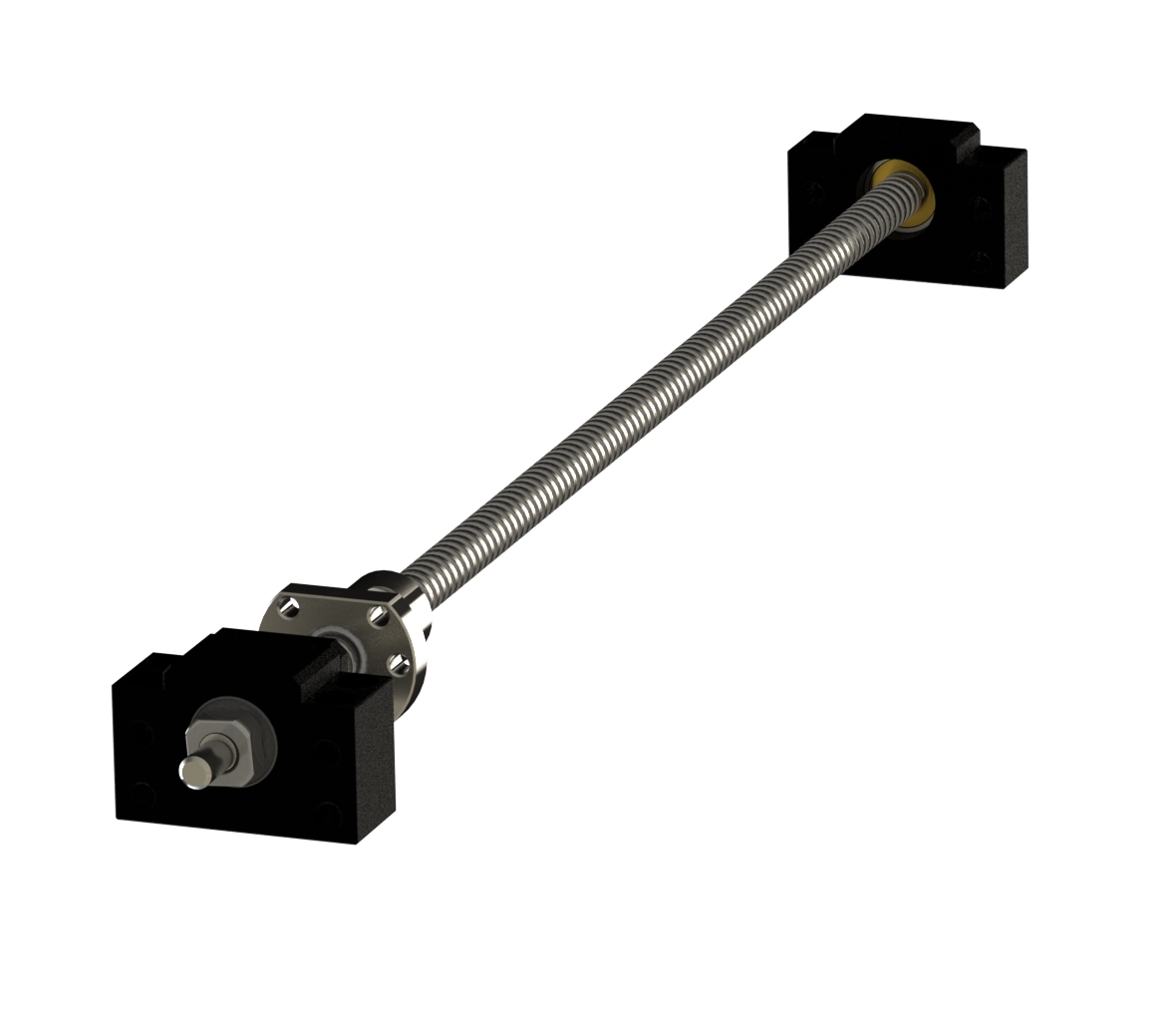

Mechanical model of ball-wint pair with supports

The 1204-500 ball-wing steam with BK/BF-10 support is made for use in the construction of complex mechanisms. The original model is collected in such a way that the rotation of the wing leads the wing wing to move. All elements are collected from separate files, allowing you to use them separately or to compose/change arbitrarily without any particular time.

More rendering and original model at https://grabcad.com/library/sfu1204-500mm-with-bk10-bf10-set-1
