Professional Sup board. 3D simulation, CFD method
Professional Sup board. 3D simulation, CFD method

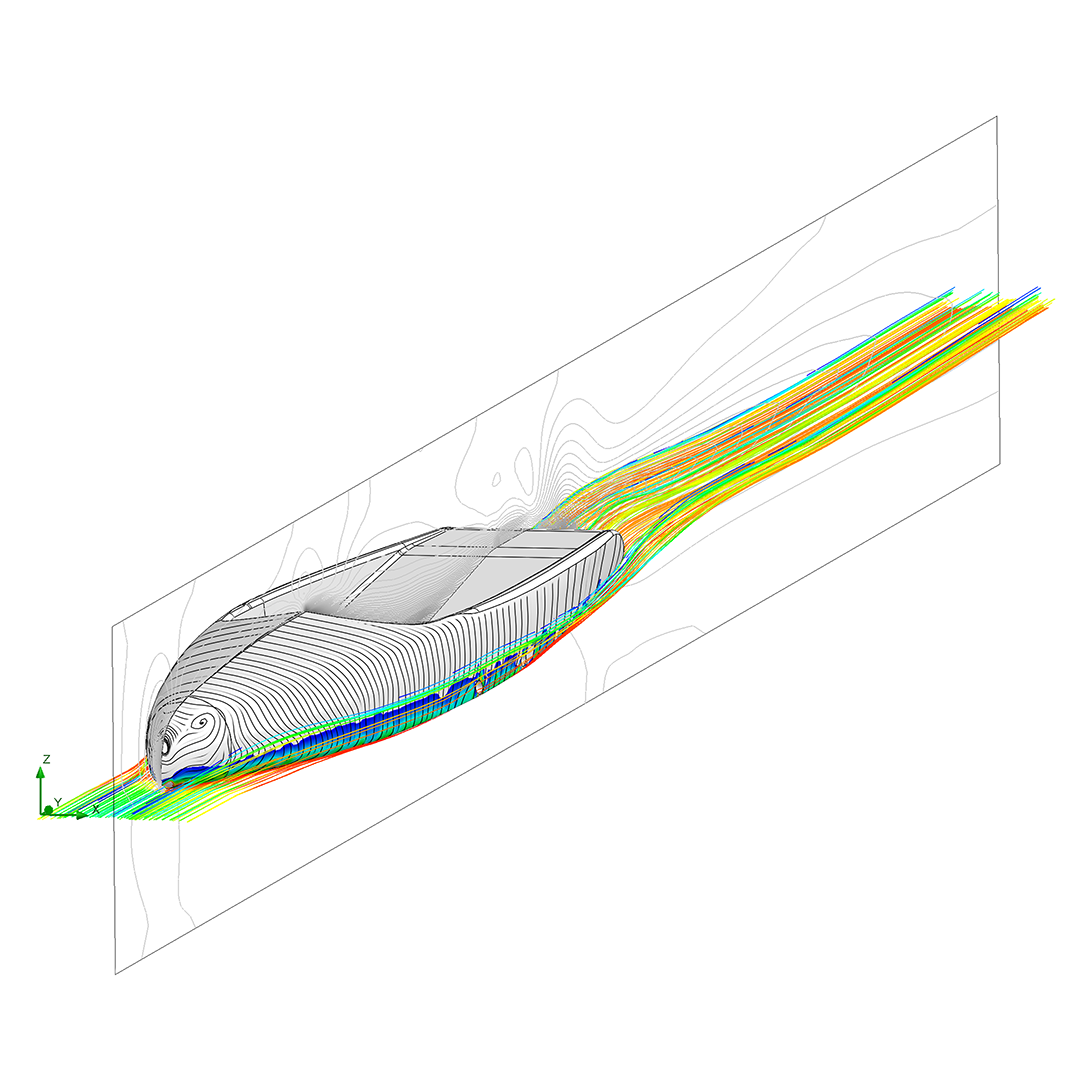

CFD (Computational Fluid Dynamics) – computerized method of water flow prediction.
When a customer came, he gives me a simple task: recreate existence design with better surface quality. The time pass, we started CFD simulations, upgrade overall design and improve time on national championship.
Troubles:
— Old design had a lot of surfaces, just imagine sup board created with scotch tape, it’ll be close to the model I’d got.
— Find balance between stability and speed.
— Explain main parameter and water surface distraction.
Solutions:
+ To solve old design trouble I created new model basement which is consisted of crossing shapes in most valuable points. It’s allowed me to change model easily and gain solid surface across the board.
+ According to discussion with the customer, each model design was created due to championship’s water type, like a flat water or wavy one. Depend on radius at the bottom of board, we achieved different results in speed and stability.
+ It took a time to explain why water creates vortex in different location and why wave form itself at a certain distant. However, after some discussions we get agreed in these questions and the work went really great.
After the first model was complete and show good results at the championship we had worked a lot and create 4 different type of boards, from Pro one, special for sport to a universal one for mass market. Now you can look at this board at the customer's site: rapid.ua (composite SUP board)
If you're interesting about my cases, feel free to visit the site freestov.com
If you have any comment about this post – leave it or dm me.
Have a good day!
#solidworks #cfd #board #supboard #sup #cad #surfacedesign #simulation #3d #engineer
