Calculation and detailing of the shelving system for the laboratory

A complete calculation and working detailing of the shelving unit for the laboratory space has been completed, which includes:
• A 3D model of the shelving system linked to the dimensions of the room;
• Processing of the structure with a final count of 96 parts;

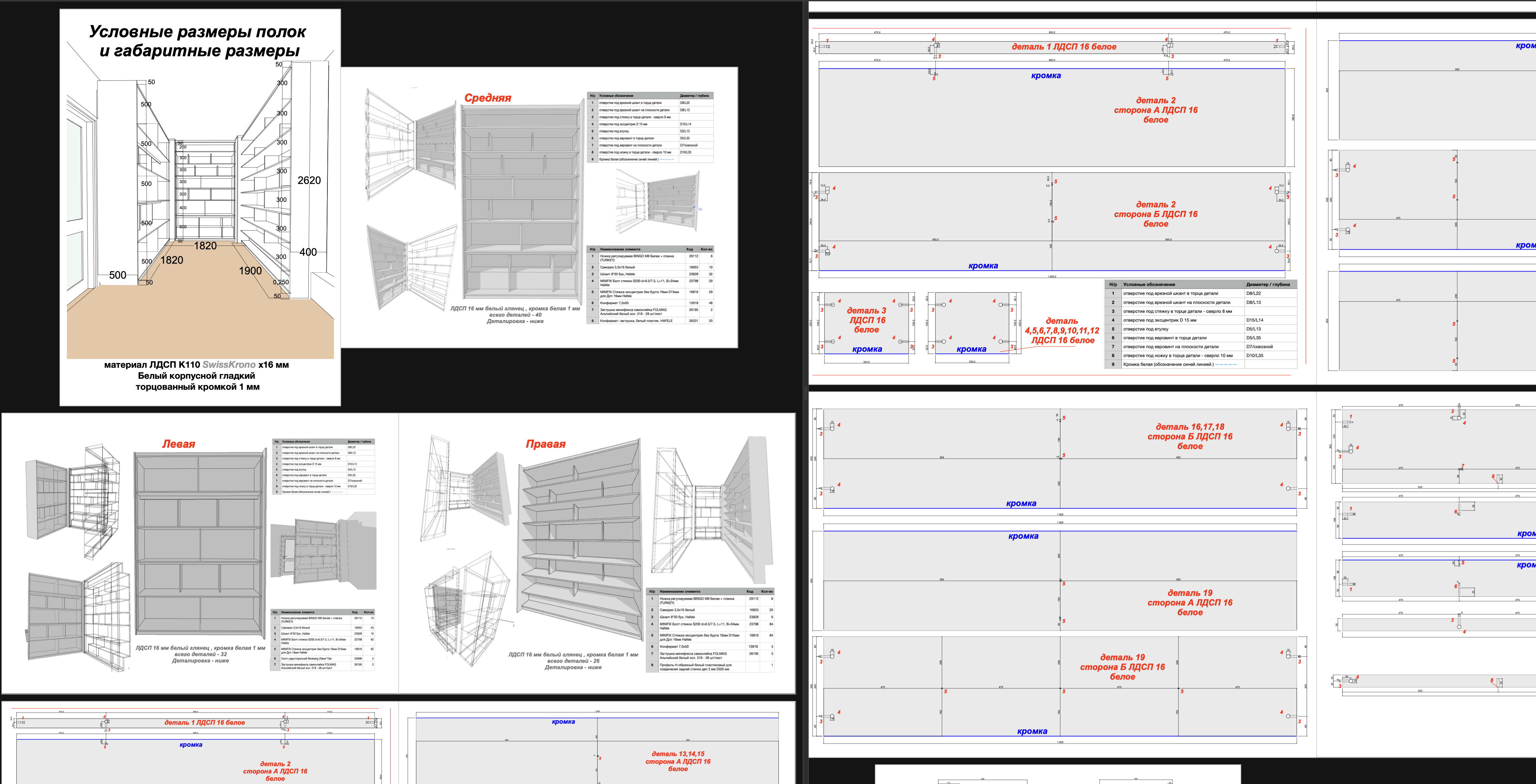

• A set of drawings on 30 sheets: cutting of particle board, drilling, joints, fasteners;
• A specification of parts and fittings for transfer to production;
• Visualizations indicating conditional and dimensional sizes for approval with the client.

The documentation has been prepared in a format fully ready for launch into furniture production and subsequent installation at the site.
