Design of a metal canopy for 2 cars (3D model, creative
Development of a complete set of design documentation and a three-dimensional model of an arch-type metal canopy for two cars.
What has been completed within the project:

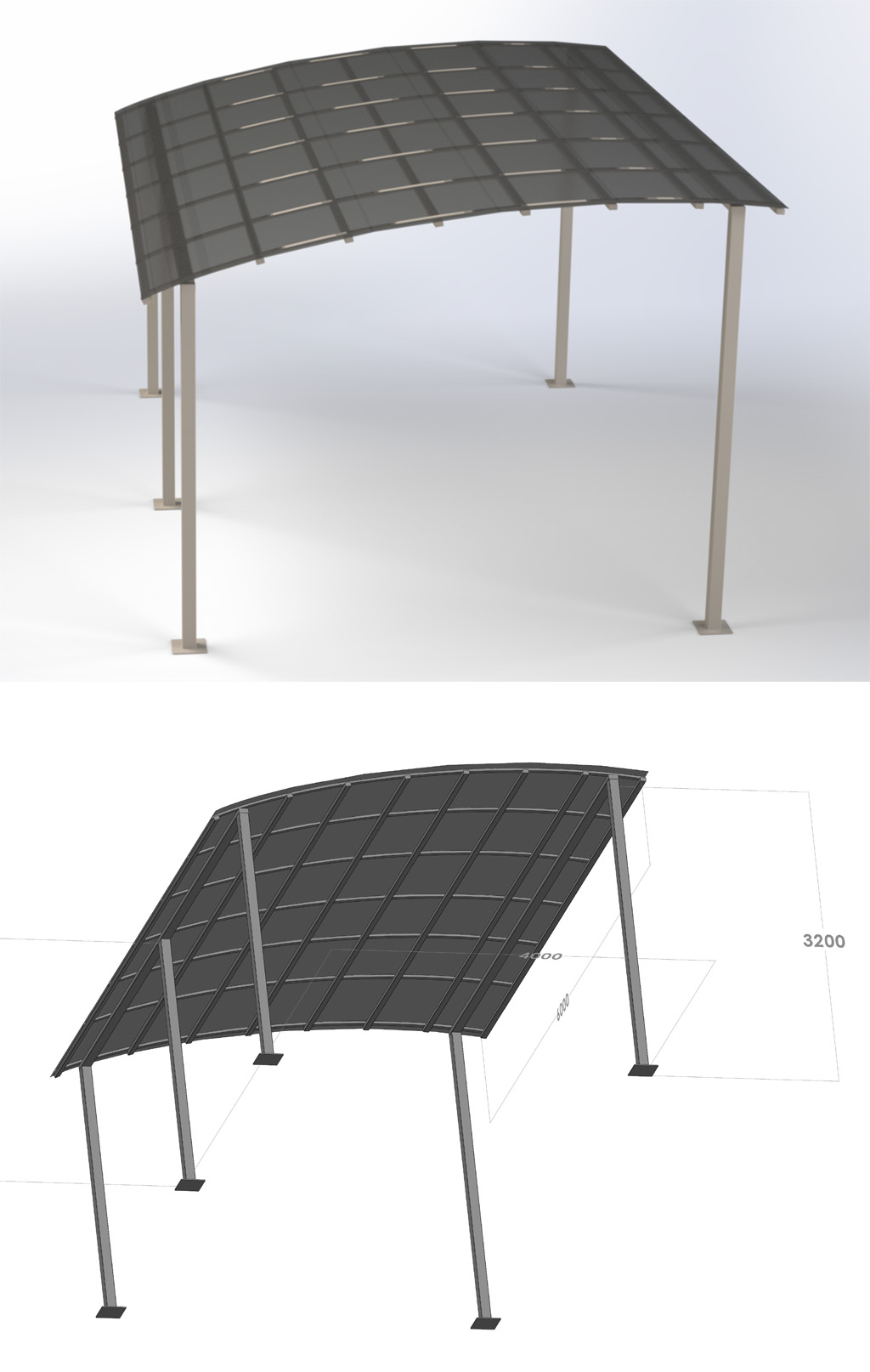

3D modeling: An accurate three-dimensional assembly of the structure has been created, taking into account the actual dimensions and profiles of the materials.
Design solutions: For the main frame, profile pipes of 100x100x6 mm and 100x60x4 mm have been used. For the rafter system and connections — profile pipe 60x60x3 mm. Support and node elements have been designed from 8 mm thick sheet metal. The canopy covering is made of 3 mm solid polycarbonate.
Production documentation: A separate detailed drawing for the bent profile pipes of the roof has been prepared for further precise rolling in production.
Economic calculation: A complete specification of materials with exact dimensions has been compiled. A preliminary calculation of metal consumption has been performed, and the exact amount of necessary metal and polycarbonate has been determined, taking into account optimal cutting to minimize waste during procurement.
The structure is fully optimized for standard metal products, technologically suitable for welding, and ready for transfer to production and further installation. #design #metalstructures #canopy #drawings #3Dmodeling #specification #SolidWorks #designer #carcanopy #rolling #metalconsumption #cutting #KMD #carcanopy
What has been completed within the project:
3D modeling: An accurate three-dimensional assembly of the structure has been created, taking into account the actual dimensions and profiles of the materials.
Design solutions: For the main frame, profile pipes of 100x100x6 mm and 100x60x4 mm have been used. For the rafter system and connections — profile pipe 60x60x3 mm. Support and node elements have been designed from 8 mm thick sheet metal. The canopy covering is made of 3 mm solid polycarbonate.
Production documentation: A separate detailed drawing for the bent profile pipes of the roof has been prepared for further precise rolling in production.
Economic calculation: A complete specification of materials with exact dimensions has been compiled. A preliminary calculation of metal consumption has been performed, and the exact amount of necessary metal and polycarbonate has been determined, taking into account optimal cutting to minimize waste during procurement.
The structure is fully optimized for standard metal products, technologically suitable for welding, and ready for transfer to production and further installation. #design #metalstructures #canopy #drawings #3Dmodeling #specification #SolidWorks #designer #carcanopy #rolling #metalconsumption #cutting #KMD #carcanopy
