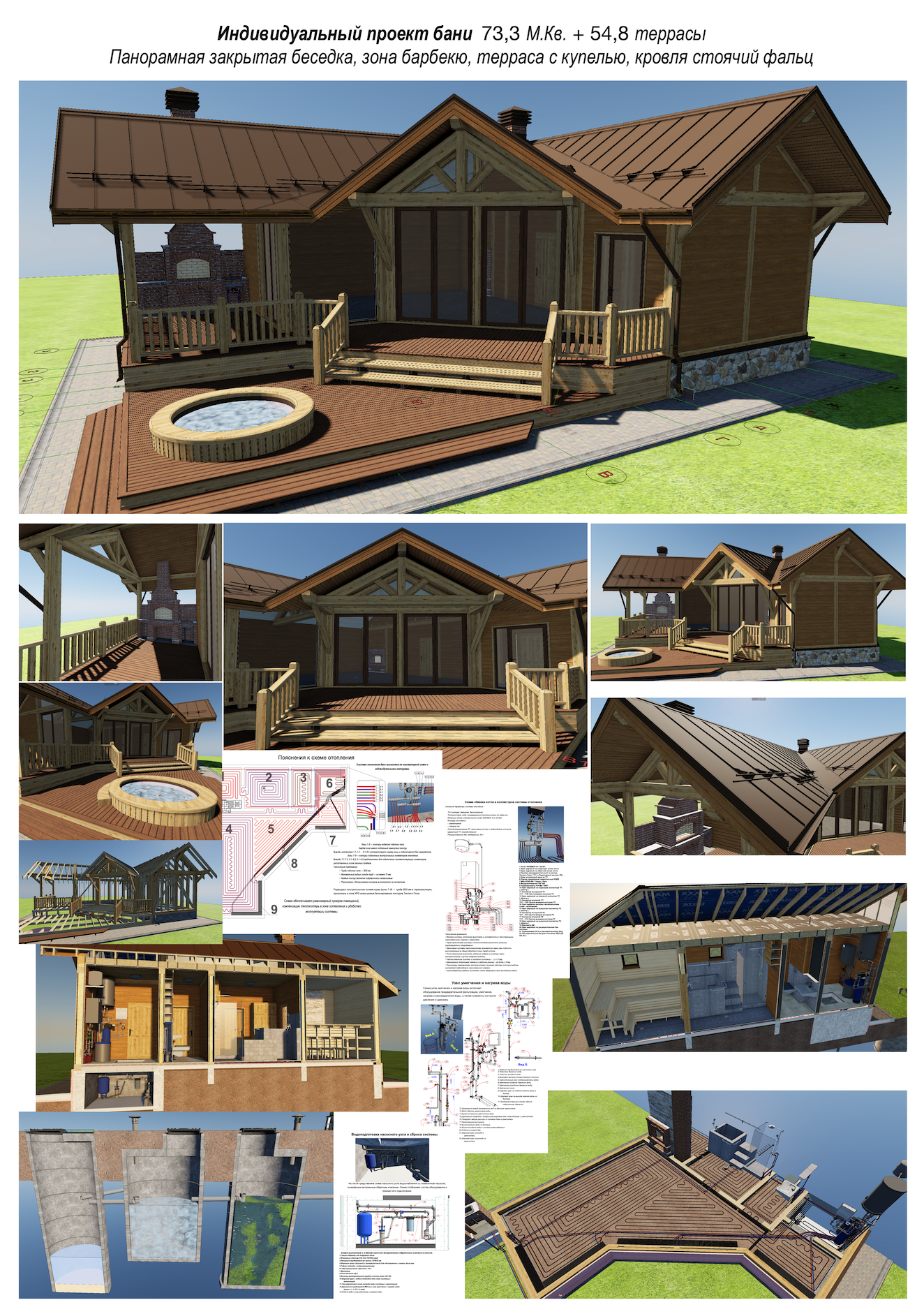

Individual bath project 73.3 m² + terrace 54.8 m²
Individual sauna project with a total area of 73.3 m² and a terrace of 54.8 m², executed as a comprehensive architectural-engineering solution with detailed development of structures, engineering systems, and nodes.
The project is focused not only on aesthetics but also on practical, durable operation year-round.
Architecture and layout
– panoramic windows emphasizing open space and natural light
– timber frame combined with a classic frame solution
– closed panoramic gazebo
– barbecue area
– terrace with a plunge pool
– double standing seam roof adhering to all technologies
Functional areas
– steam room designed for 6 people
– washing area with shower and plunge pool
– restroom
– technical room
– terrace with access from the main areas
Engineering systems
– water (hydronic) heating
– built-in floor convectors under panoramic windows and entrance areas
– separate warm floor circuits not connected to the convectors
– boiler with separate circuits
– hot water supply boiler with a capacity of 150 liters
– autonomous well with water purification and softening unit
– water outlet to the street in the barbecue area and to the plunge pool on the terrace (considering seasonal discharge both separately - external and general system)
– double purification sewage system with 3 receiving pits
Construction and insulation
– walls: thermal insulation 150 mm
– ceilings: insulation 200 mm
– internal and external finishes applied: imitation beam 135 x 20; paneling style 90 x 15
– insulated plinth and pavement with extruded polystyrene
– terrace with decking made of 90 x 30 mm boards and solid wood railing
– steam room - linden, slate, ceramic granite mosaic
– flooring in the common area: ceramic granite 1200 × 600 mm
The project is executed with detailed development of nodes, sections, and engineering solutions, taking into account real construction processes and further operation. Suitable for both individual construction and subsequent adaptation to specific plots and conditions.
