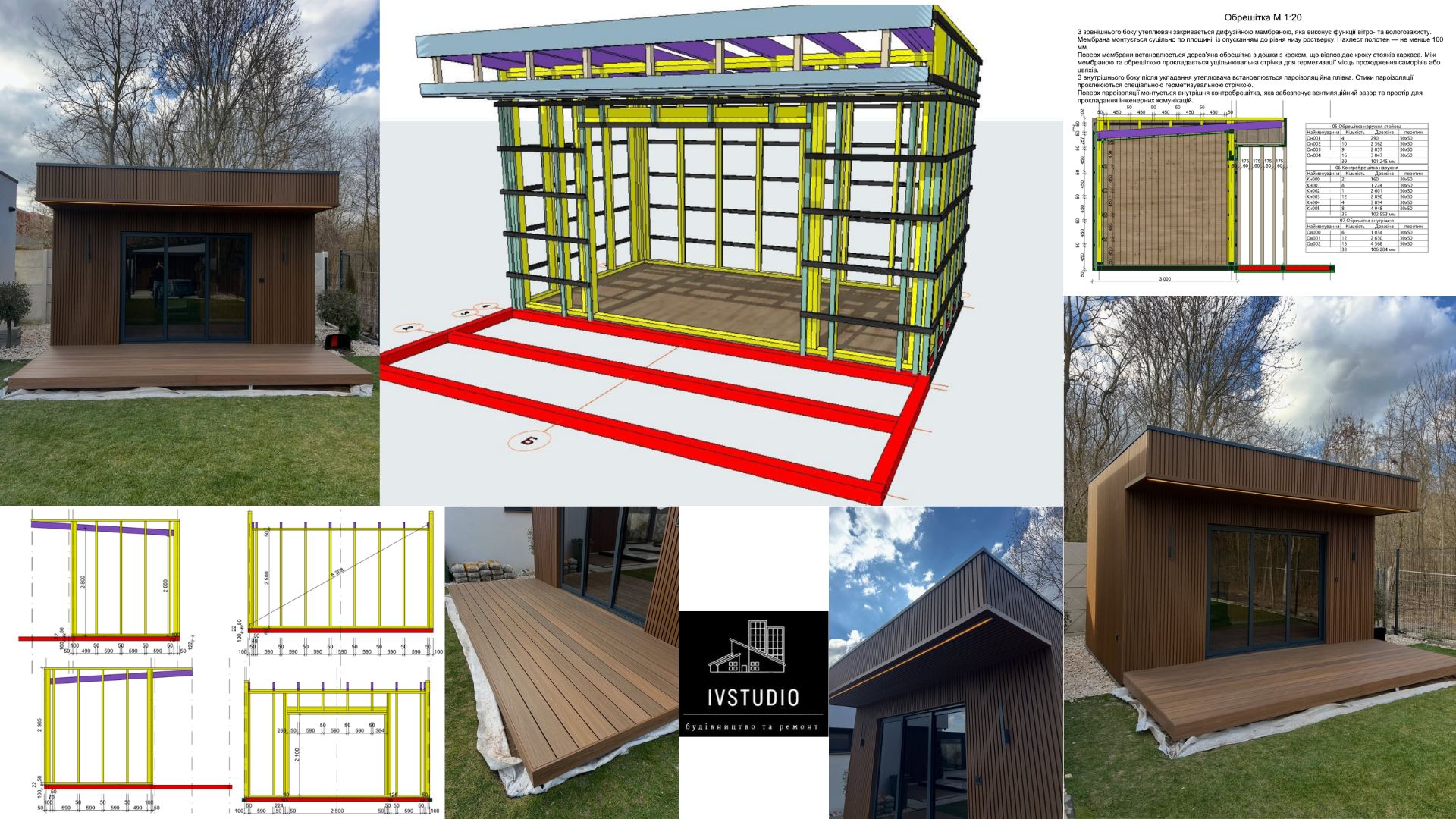

Project of a modern gazebo 5x6 m (AR + KR)

Developed a complete set of drawings for the construction of a stylish and functional gazebo with a terrace. The project combines modern design with a reliable wooden frame.

What is included in the project:

AR (Architecture): planning of the recreation area, facades, and sections considering modern finishing with slats.

KR (Structural): detailed scheme of the load-bearing frame, connections of the rafter system, and foundation.

TTX: complete specification of materials (volume of wood, area of finishing and roofing).

Installation schemes: drawings of the lathing, wall pie, and roofing with a detailed description of each layer.

The gazebo is designed for quick assembly and is ideal for both private plots and commercial recreation areas.
