Straw walker-02

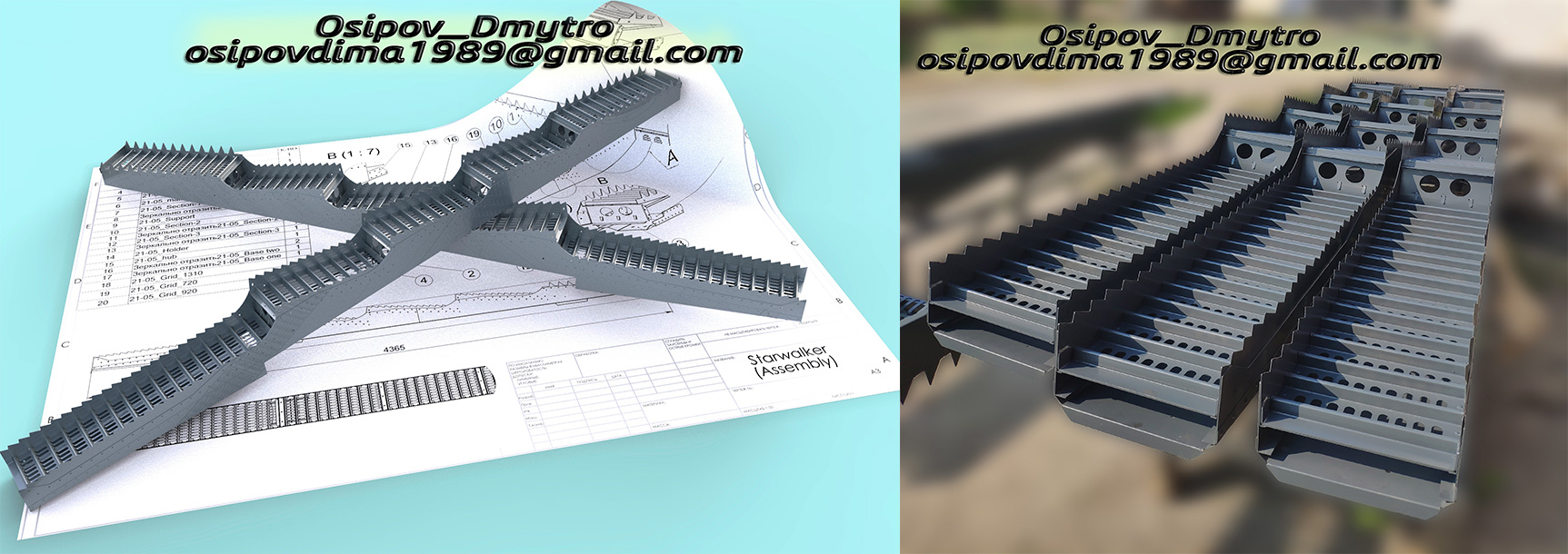

By employing the methods of reverse engineering, solidworks, and sheet metal expertise, I constructed a straw walker equivalent for a combine harvester. Through the utilization of CNC laser cutting and CNC bending machinery, we managed to fabricate a collection of 50 pieces with ease. In addition to this, I designed comprehensive assembly and part drawings that facilitated the successful completion of the end product.
