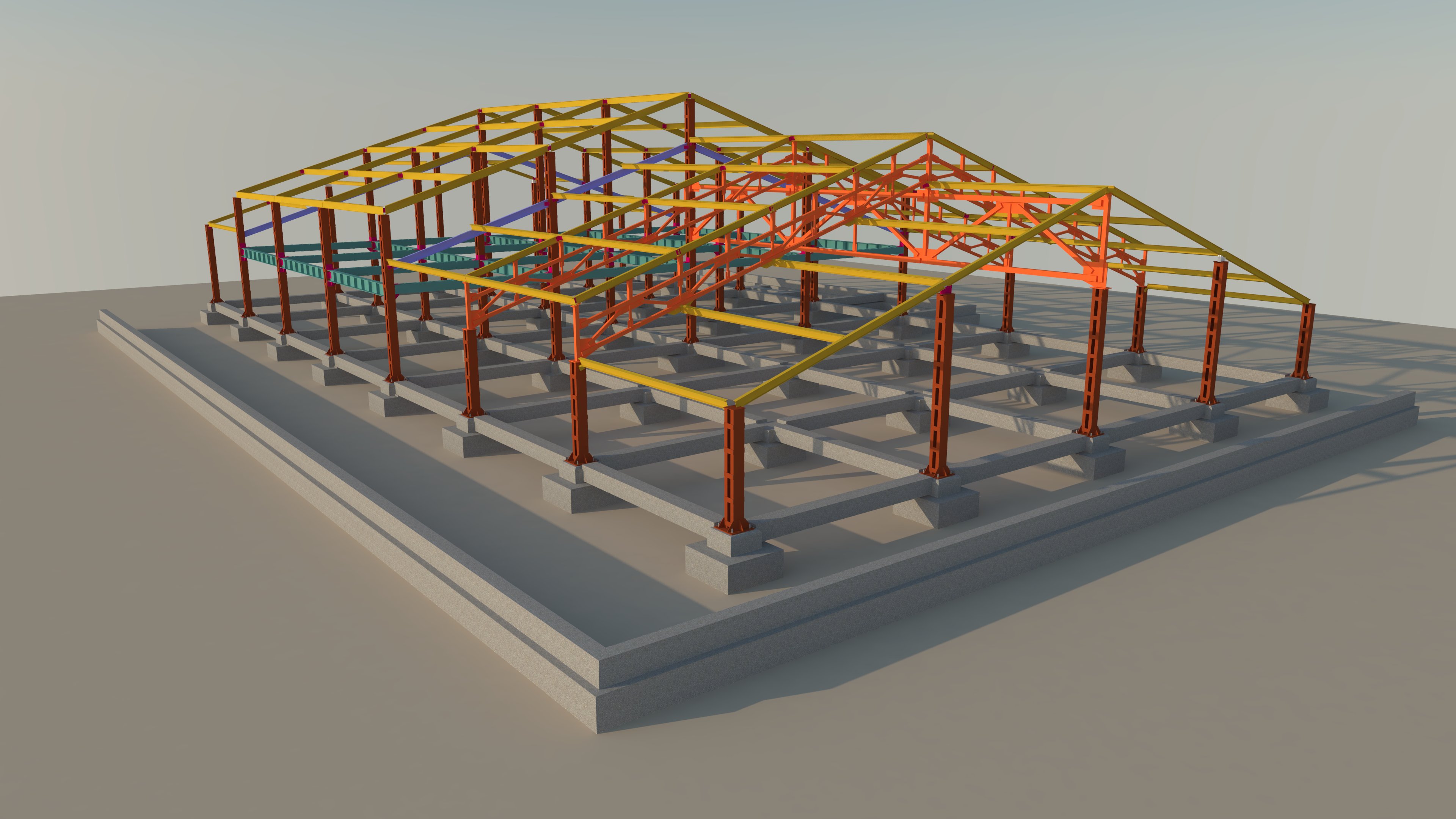

The concept of the frame of the building (Figure 1)

Restaurant with 600 seats
Year of documentation - 2014
The developed sections:
CR1, constructive solutions (project composition, TEP)
- CR2, constructive solutions (conscious knowledge of the need for basic construction materials)
AR, architectural solutions
- AS, architectural - construction solutions (construction of the ground part)
- KJ, iron concrete structures (found construction)
- KJ1, iron concrete structures (construction of overcoll cover)
CM, metallic structures
Summary sheet - 700 sheets attached to format A4
Introduction - in the construction process
Total area without reducing coefficients - 1600.0 m2
Total area with decreasing coefficients - 1400.0 mq.
Area of construction - 1320.0 m2
The size of the spot of the building inserted in a straight corner - 46.0 x 36.5 m
Total time for the development of project documentation - 2.5 calendar months
