Complex roofs, metal structures, coverings ArchiCAD

Professional calculation and design of complex roofs, metal structures, ceilings, and reinforced concrete structures.

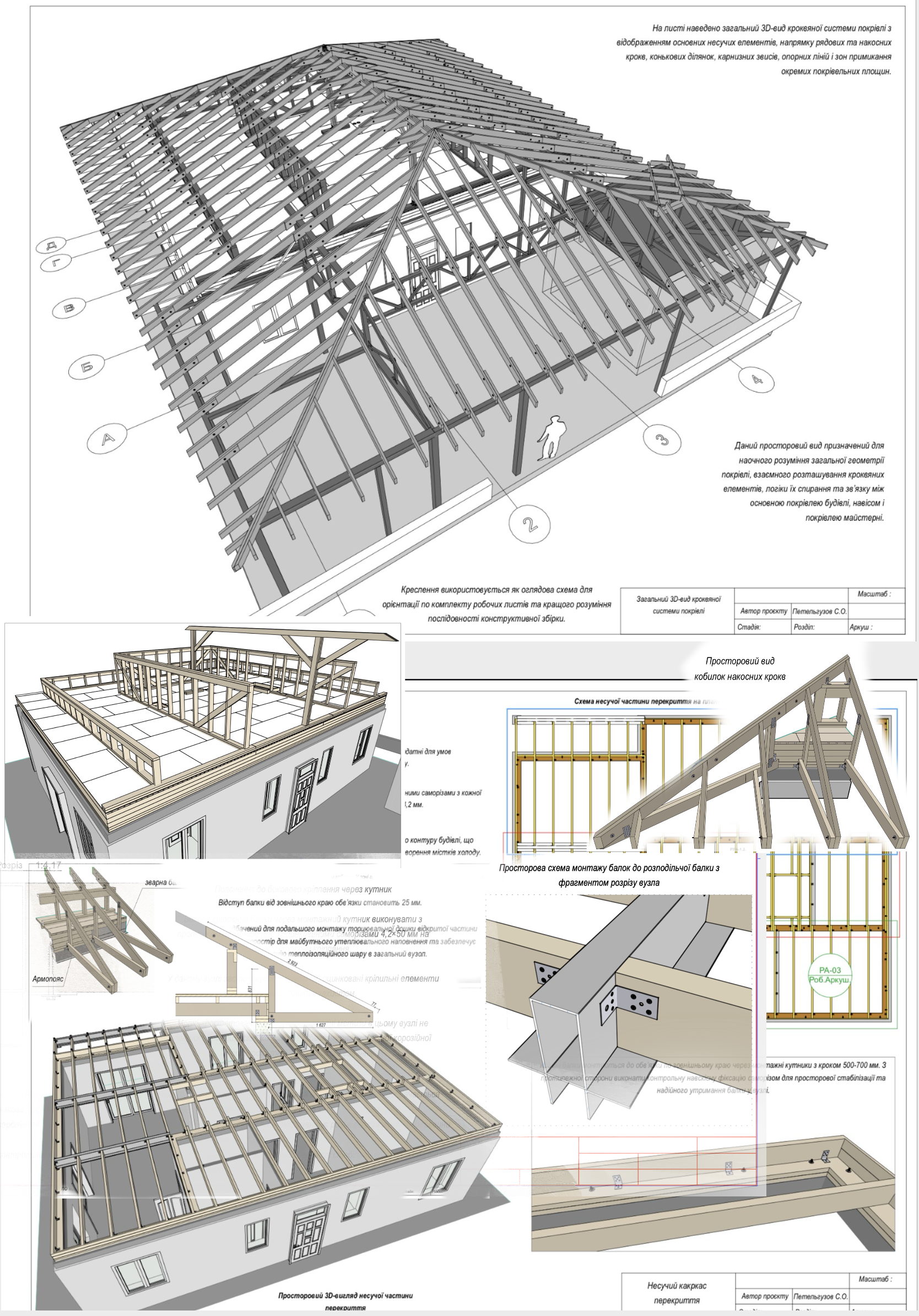

An example of my approach to structural documentation can be viewed in my portfolio on Behance. This project showcases not just the development of drawings, but a complete 2D/3D explanatory concept of the roof and ceiling structure: reinforced belt, embedded parts, welded beams, framing, ceiling framework, insulation, OSB, mauerlat, purlins, rafters, and nodes. The main focus is on maximum clarity, visibility, and ease of reading the documentation for the client, production, and installation.

I perform professional design of the structural part of buildings in ArchiCAD, creating clear, logical, and technologically suitable documentation for further construction, manufacturing, and installation.

I work with complex and combined roofs, metal structures, wooden load-bearing systems, ceilings, masonry plans, reinforced belts, reinforced concrete elements, fastening nodes, and structural solutions of varying complexity.

I emphasize not just beautiful drawings, but the actual performance of the structure: correct load transfer, logic of support points, system rigidity, ease of installation, and clarity of each node for builders on site.

I can perform:

– calculation and structural development of complex and combined roofs;
– design of metal frames, trusses, beams, columns, and connection nodes;
– development of wooden rafter systems, mauerlat, purlins, braces, and ties;
– masonry plans for walls with reference to structural logic;
– schemes for ceilings, beams, flooring, reinforced belts, and embedded elements;
– reinforced concrete structures, monolithic belts, support areas, anchors, and embedded parts;
– junction nodes, installation schemes, 3D explanations, and sections;
– PDF documentation, understandable for both the client and the executors.

I work attentively to details, considering real construction logic, sequence of installation, and practical execution on site. The documentation is presented in a readable format: with sections, nodes, 3D fragments, explanations, and a clear structure of sheets.

If you need not just a formal set of drawings, but a well-thought-out structural system with verified logic of operation for each element - I am ready to assist with calculations, detailing, and preparation of project documentation.
