Project of commercial equipment

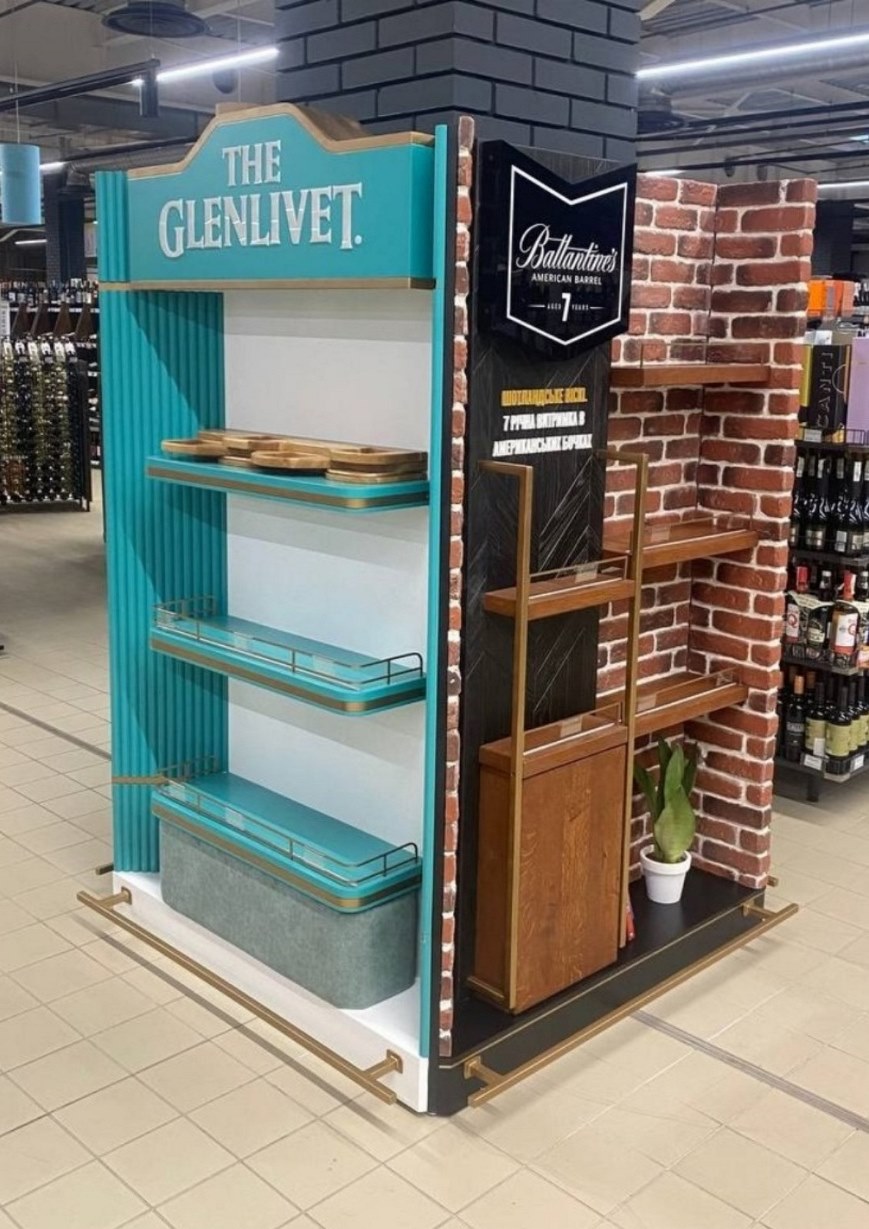

This was a real project involving the production of a brand stand.
Stages:
1) Creation of a model suitable for assembly according to the declared materials and processes (technical task);
2) Visualisation of the model (approval by Logos);
3) Drawings for the assembler to help them understand the assembly and assembly process.
4) Separate drawings for each stage of production (with detailed information on metal, CNC, MDF and fittings).
5) A general estimate of materials (specification and cutting).

Time:
always depends on the complexity and workload of production.
Corrections to this project had to be made during the assembly process, involving changes to some units and parts. The team worked quickly and efficiently, and the final product was ready in about one month.

Cost:
The cost of the project is based on a clear volume and stages of work ($4.5 per hour).
This was calculated based on my workload.
There were times when I had to wait for production or the designer's input.
To make changes.
Waiting time is not included in the price.
