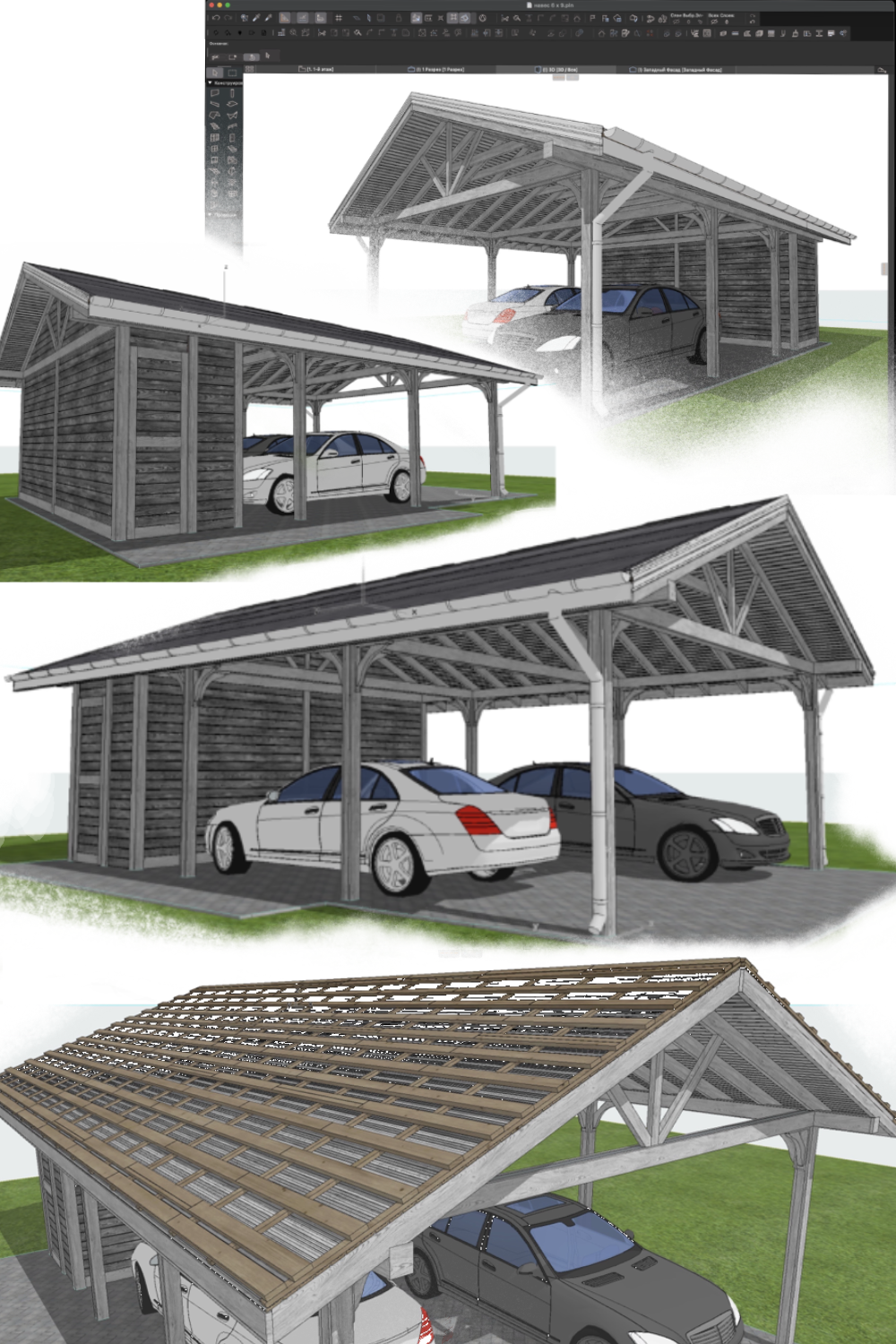

ArchiCAD Project of a carport for two cars 9×6 m

Development of a carport for two cars with a utility storage section. The project is completed in ArchiCAD as a full structural system, suitable for manufacturing and installation without additional clarifications.

The structure is developed not as a conditional visual model, but as a real frame system with a clear logic of element operation, correct load transfer, and technologically justified nodes.

At the core of the project is an accurate spatial model that allows for the pre-determination of the geometry of the structure, ensures the rigidity of the frame, and eliminates problems during manufacturing and assembly.

Dimensions of the carport
9 × 6 m

Purpose
– accommodation for two cars
– protection from precipitation and solar exposure
– integrated storage section for storage

Structural solution

– wooden load-bearing frame
– decorative load-bearing trusses of the gables
– longitudinal beam system of the ceiling
– rafter system with uniform load distribution
– architectural braces for spatial rigidity
– drainage system with organized water diversion
– separate utility section

Project features

– accurate 3D model of the structure
– correct operation of all load-bearing elements
– possibility of manufacturing without additional calculations
– clear assembly logic on site
– neat architecture in a classic style

The project is suitable for

– private houses
– country plots
– car parking
– storage of garden tools

The development is carried out with consideration of real construction experience and understanding of the technology for manufacturing frame structures.
