Lifting, transportation, and installation of modular houses. Fastening.

Design of universal transport and assembly units for modular houses

I am developing structural solutions for modular houses, taking into account the complete real-life cycle of the module: manufacturing, crane lifting, securing on a transport pallet, transportation, unloading, and installation on piles or other supports.

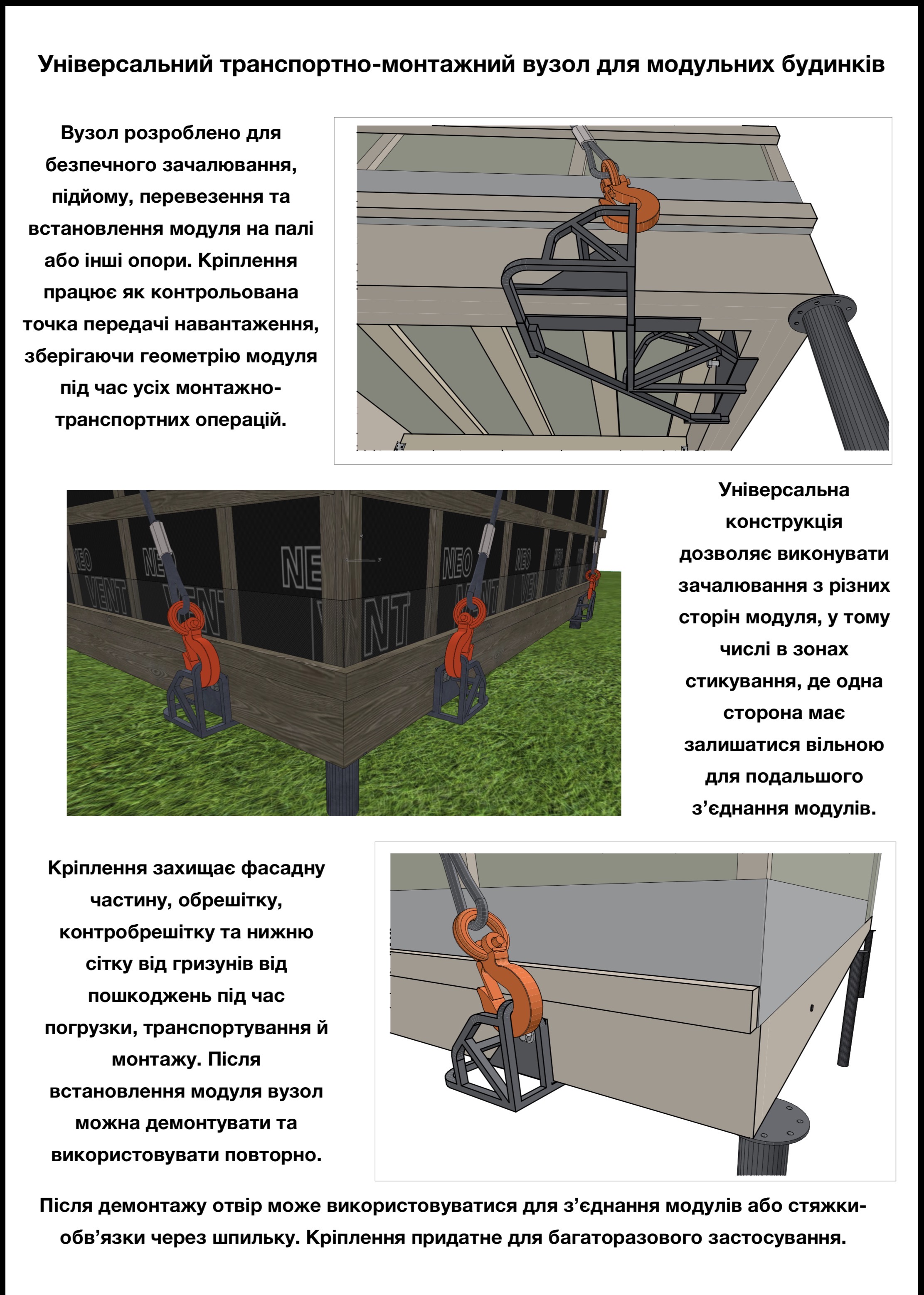

This document shows a universal transport and assembly fastening unit that allows for the safe lifting, moving, securing, and mounting of the module without damaging the facade, sheathing, counter-sheathing, lower rodent mesh, and other adjacent elements.

The fastening can be used for crane lifting from different sides of the module, as well as in joint areas where one side must remain free. It acts as a controlled load transfer point, maintaining the geometry of the module and reducing the risk of deformation during loading, transportation, and installation.

The calculation and development of the unit include detailing all elements for the manufacture of this fastening, considering the correct transfer and unloading of forces during lifting, securing, transportation, and installation of the module. A 3D model is also provided, with an example of practical use of the unit within the modular structure.

A separate advantage of the solution is that after the module is installed on piles or any other supports, the fastening can be easily dismantled and reused multiple times. Moreover, the mounting hole left after the fastening is removed does not remain an accidental element: it can subsequently be used for connecting modules together or for tying-banding through a pin, which is an additionally provided functional advantage of the unit.

The result is a well-thought-out structural solution that protects the module during logistics and installation, preserves the integrity of the finishing layers, and ensures neat installation without unnecessary damage and rework.
