3D modeling and drawing of a sponge organizer with drainage

Designing a 3D model and creating a working drawing of a soap dish/organizer for a shower sponge based on the individual (funny) idea of the client.

The main technical requirement is to ensure automatic water drainage after using the sponge. For this, the correct angle of the bottom slope has been designed, and a special drainage spout has been developed (made in a non-standard humorous shape as conceived by the client). Legs for stability on the sink or bathtub are also provided.

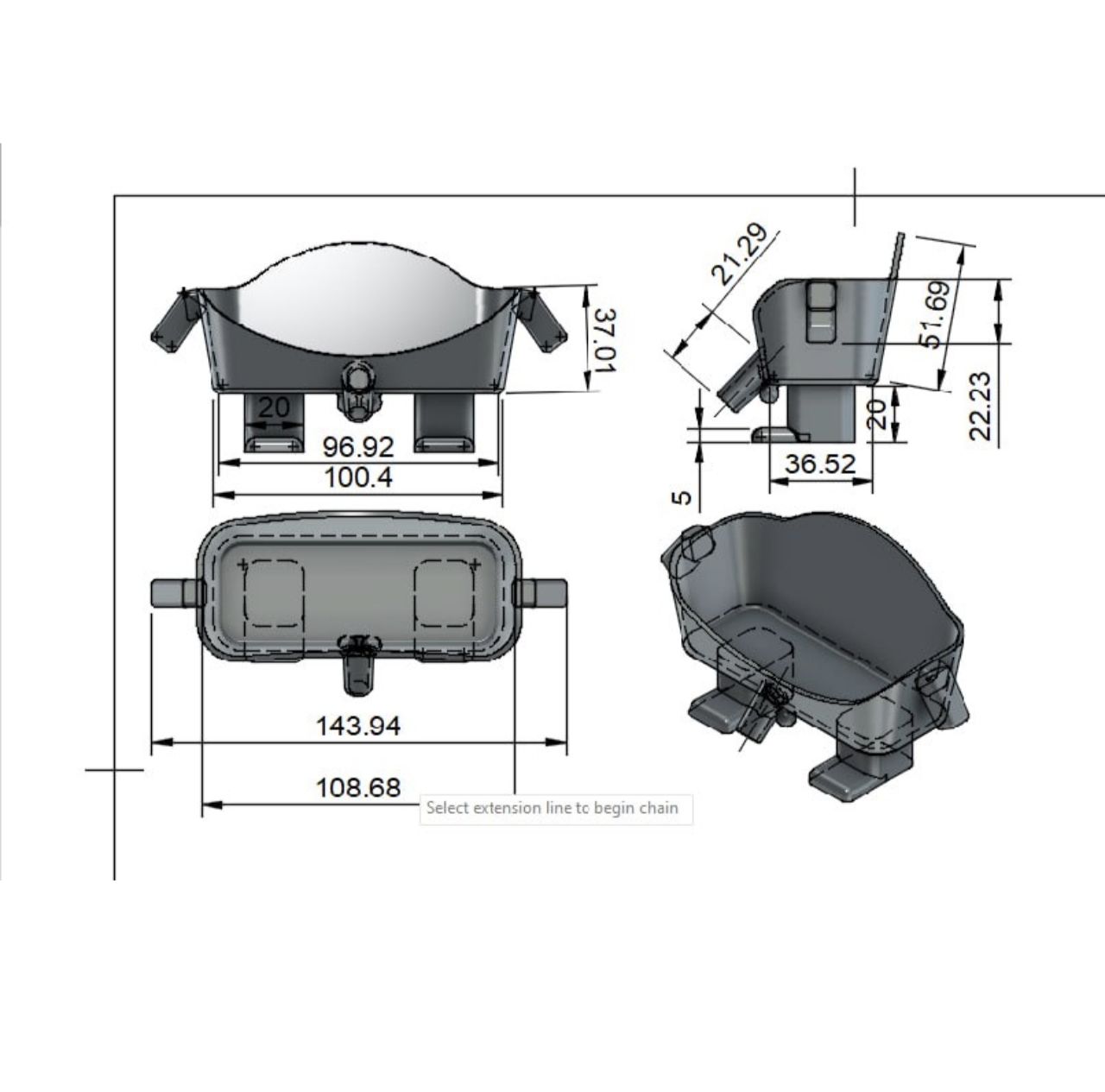

A fully functional detail has been developed that combines humor and real household utility. Additionally, a technical drawing with all dimensions has been created. The model is perfect for 3D printing.
Autodesk Fusion 360 (modeling + Drawing).
